Pipe Welding Positioners

Standard Hydraulic Pipe Welding Positioners / rotary welding table / welding turning table

Quick Detail:


Positioners provide steel fabrication shops with the most up-to-date equipment for placing bulky fabrications in the ‘downhand’ position in the shortest possible time without the use of cranes and manpower. The positioners tables rotate at accurate and constant variable speeds and tilt through 135° with a high C.G. load rating covering almost all anglers for welding any angular job placed on it. Positioners can be supplied for interfacing with Column and Boom Manipulator.



Description:


Achieving the down-hand weld position is essential for the fabrication and assembly of noncylindrical workpieces.
Ronniewell's range of Positioners provides the quickest means of both rotating and tilting through 360 degrees while allowing maximum access to the workpiece.
Free-standing, robust all steel fabrication, variable speed table rotation, round or square 'T-slotted' tables with extension arms on some models, table tilt, table elevation, steel gears, the latest enclosed electronic controls, efficient built-in earth, remote push button pendant control with a huge range of optional extras make Ronniewell's Positioners your number one choice.



Applications:


Welding positioners enable large, bulky or awkward workpieces to be accurately positioned to achieve the ‘down hand’ welding position without the need for overhead cranes or additional manpower or handling equipment.
The ‘down hand’ welding position is essential to achieve efficient welding procedures, maximize deposition rate and meet the welders demand for fast, safe and efficient production requirements.



Specifications:

Competitive Advantage:

• Robust all steel fabrication
• Variable or single speed table rotation through 360°
• Square or round table as desired. with T slots and concentric rings to facilitate fast and accurate alignment and clamping.
• Power Operated Table tilting mechanism through 135°, including limit Switches to prevent over-run.
• Centre spindle carried in sealed pre-loaded Timken bearings or, depending on capacity Large diameter crossroll bearing is provided.
• Accurate machine cut steel gears.
• Efficient built-in earthling. Totally enclosed electrical motors including electromagnetic breaks.
• Pendant remote push button controls for all movements, together with speed potentiometer

Weld Positioners

Pipe Rotators for Welding

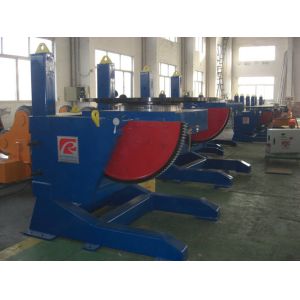

Pipe Welding Positioners Images
